SoilRipper™

Extreme Tillage Points

This is an image of a SoilRipper Tillage point

Ingersoll's new SoilRipper tillage points feature a robust design and superior fine grain chromium-carbide steel to withstand the most challenging soil conditions, providing the best overall value choice. Brought to you by the company you can trust for leading quality.

This is an image of the SoilRipper tillage points in action

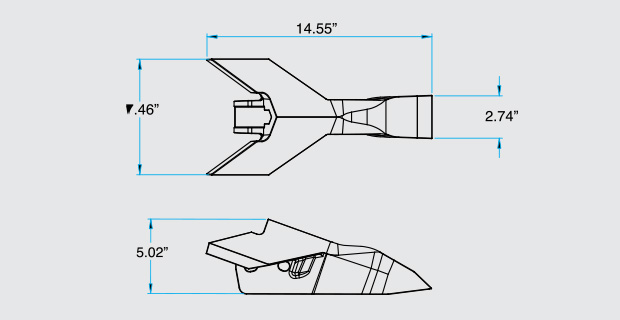

This is an image of a SoilRipper Tillage Point diagram

Features

  • Patent pending
  • More robust design with extra high strength steel for longer service life
  • Wing and nose surface geometry generates maximum soil fracturing while reducing draft loads
  • As they wear, SoilRipper points maintain their ability to penetrate the toughest soil conditions
  • Wear feature protects mounting hardware
  • Ideal for high speed compaction-busting tillage applications

Specifications

  • Solid one-piece cast for extreme durability with super hard steel
  • Formed from fine grain chromium-carbide steel
  • Rockwell hardness score of 48-50 Rc
  • 7.5" winged SoilRipper point designed for a 1.25" shank width
  • 24 lbs.
  • Designed to fit Case-IH, DMI, Krause and John Deere equipment
  • Additional designs, models and sizes to come
