Ideal for high speed vertical tillage
The SoilRebel 25 wave concave coulter is designed for high speed operations while it produces less soil smearing and reduced compaction.
It is ideal for high speed vertical tillage.
This blade’s aggressive wave profile is well designed for sizing and mixing residue with soil.
Aggressiveness
Tillage Practice
Residue Management
Soil Penetration
Speed
Seedbed Preparation

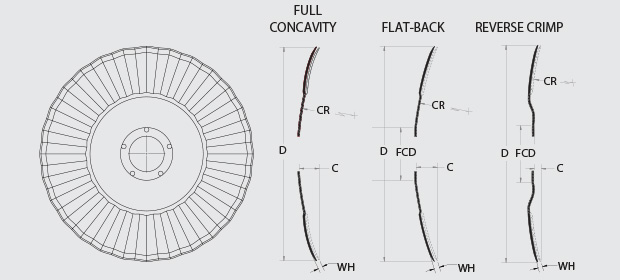

| D inches | D mm | T mm | W# | WH inches | WH mm | C mm |
|---|---|---|---|---|---|---|
| 18" | 462 | 5 | 25 | 0.53 | 13.5 | 43.5 |
| 20" | 510 | 5/6.5 | 25 | 0.53 | 13.5 | 54 |
| 22" | 560 | 5/6.5 | 25 | 0.53 | 13.5 | 64 |
| D inches | D mm | T mm | W# | WH inches | WH mm | C mm |
|---|---|---|---|---|---|---|
| 18" | 464 | 5 | 25 | 0.53 | 13.5 | 40.5 |
| 20" | 512 | 5/6.5 | 25 | 0.53 | 13.5 | 48 |
| 22" | 567 | 5/6.5 | 25 | 0.53 | 13.5 | 52 |
| D inches | D mm | T mm | W# | WH inches | WH mm | C mm |
|---|---|---|---|---|---|---|
| 18" | 462 | 5 | 25 | 0.53 | 13.5 | 33.5 |
| 20" | 513 | 5/6.5 | 25 | 0.53 | 13.5 | 45.8 |
| 22" | 560 | 5/6.5 | 25 | 0.53 | 13.5 | 49.3 |
| D inches | D mm | T mm | W# | WH inches | WH mm | C mm |
|---|---|---|---|---|---|---|
| 18" | 464 | 5 | 25 | 0.53 | 13.5 | 27.5 |
| 20" | 517 | 5/6.5 | 25 | 0.53 | 13.5 | 37.5 |
| 22" | 567 | 6.5 | 25 | 0.51 | 13.1 | 49.5 |
| D inches | D mm | T mm | W# | WH inches | WH mm | C mm |
|---|---|---|---|---|---|---|
| 18" | 464 | 4 | 25 | 0.53 | 13.5 | 0 |
| 20" | 517 | 5/6 | 25 | 0.53 | 13.5 | 4.5 |
| 22" | 574 | 5/6/6.5 | 25 | 0.51 | 13.1 | 13 |
